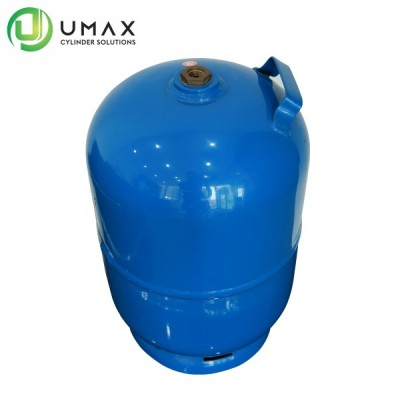

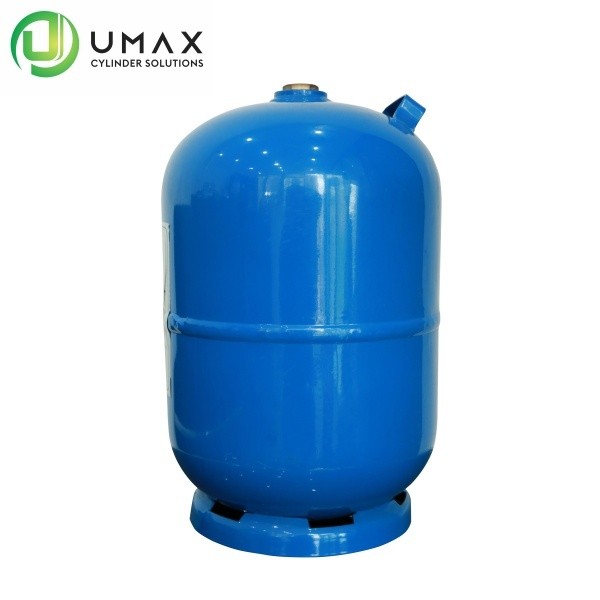

● Max. filling gas weight: 5 Kg
● Water capacity: 12L
● Total height: 430mm
● Outside diameter of the cylinder:¢249mm
● Body height: 303mm
● Nominal wall thickness: 2.3mm
● Min. wall thickness: 2.0mm
● Outside diameter of the base:¢200mm
● Outside diameter of the shroud:¢162mm
● Steel material: HP295
●Test pressure: 3.2MPa
●Work pressure:2.1MPa
Hubei Umax Industrial Corporation Limited
